WAVLINK WL-WN588HX3 AX3000 WiFi 6 Outdoor Access Point / Range Extender / Dual-Band AX3000 WiFi 6 Outdoor AP with 6 Antennas, PoE & IP67

The WAVLINK WN588HX3 is an AX3000 dual-band WiFi 6 outdoor access point engineered for permanent outdoor deployment. With six 7dBi high-gain antennas, IP67 weatherproofing, built-in signal amplifiers, and dual PoE support, it delivers up to 300 meters of 360° coverage — ideal for farmyards, RV parks, marinas, campuses, and outdoor event venues.

AX3000 WiFi 6 — Fast Enough for Everything Outdoors

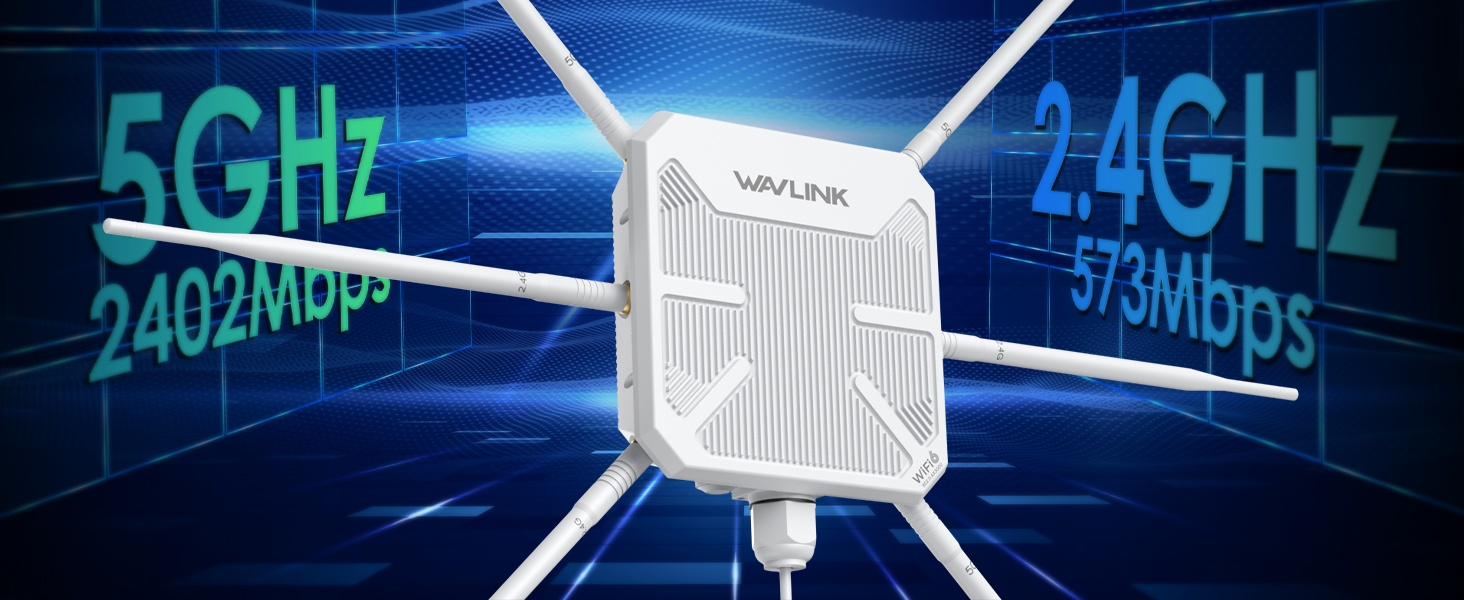

Dual-band WiFi 6 (802.11ax) delivers up to 2402 Mbps on 5 GHz and 573 Mbps on 2.4 GHz — bandwidth for HD streaming, smooth video calls, and lag-free gaming, even outdoors. OFDMA and MU-MIMO handle up to 256 connected devices simultaneously without slowdown, while beamforming focuses signal directly toward each client for a stronger, more stable connection.

6×7dBi High-Gain Antennas with Signal Amplifier

Six external 7dBi omni-directional antennas — three for 5 GHz, three for 2.4 GHz — form a cross-matrix array for full 360° coverage. Built-in high-power amplifiers extend the 5 GHz band up to 300 meters in open line of sight, maintaining stable throughput from the base of the mount to the edge of the property.

IP67 Weatherproof — Built to Stay Outside

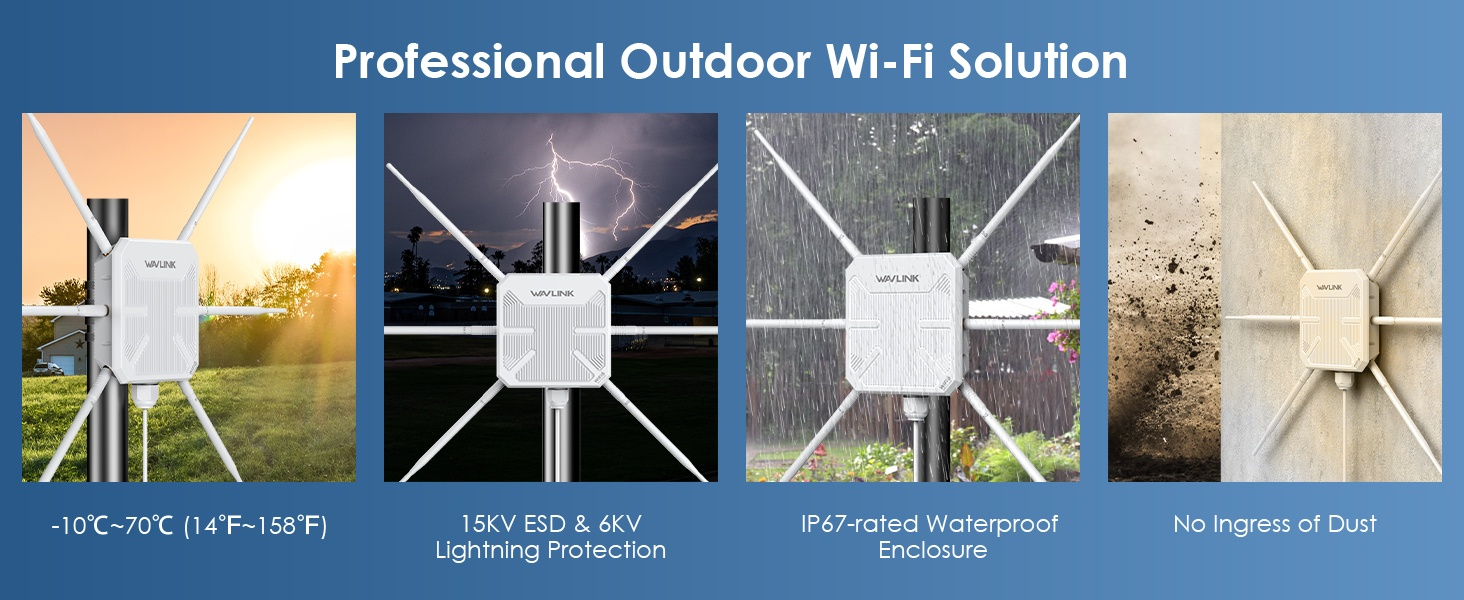

The fully sealed IP67-rated enclosure withstands heavy rain, dust, extreme cold, and continuous moisture. 15KV ESD protection guards against electrostatic discharge, and an integrated ground wire terminal adds lightning protection when connected to a proper ground. The included PoE injector and power adapter are not waterproof and should be installed indoors.

Power over Ethernet — One Cable Does It All

No outdoor power outlet needed. The WN588HX3 supports both Active PoE (802.3at/af) for plug-and-play use with standard PoE switches and Passive PoE (48V, injector included) for cost-effective long cable runs. A single CAT5E or better Ethernet cable (up to 100 meters) carries both gigabit data and power. Mounting bracket, cable ties, and screws are included for pole or wall installation.

Everything Mesh — Expand Without Limits

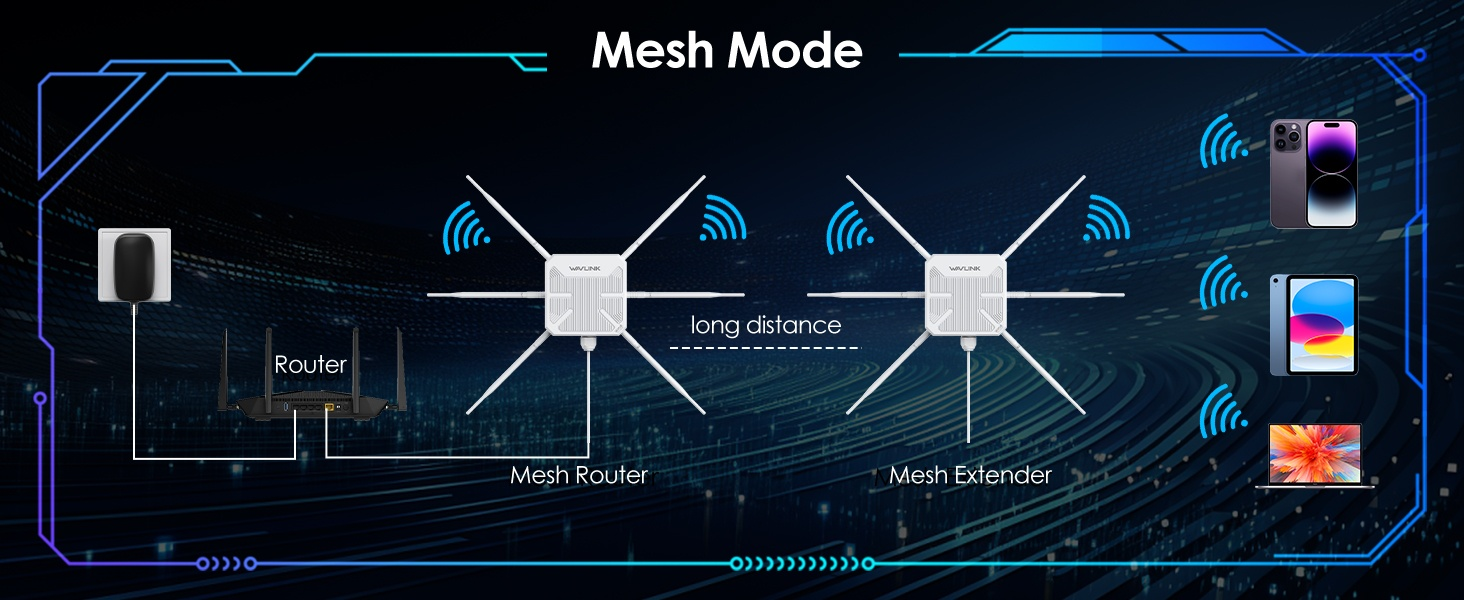

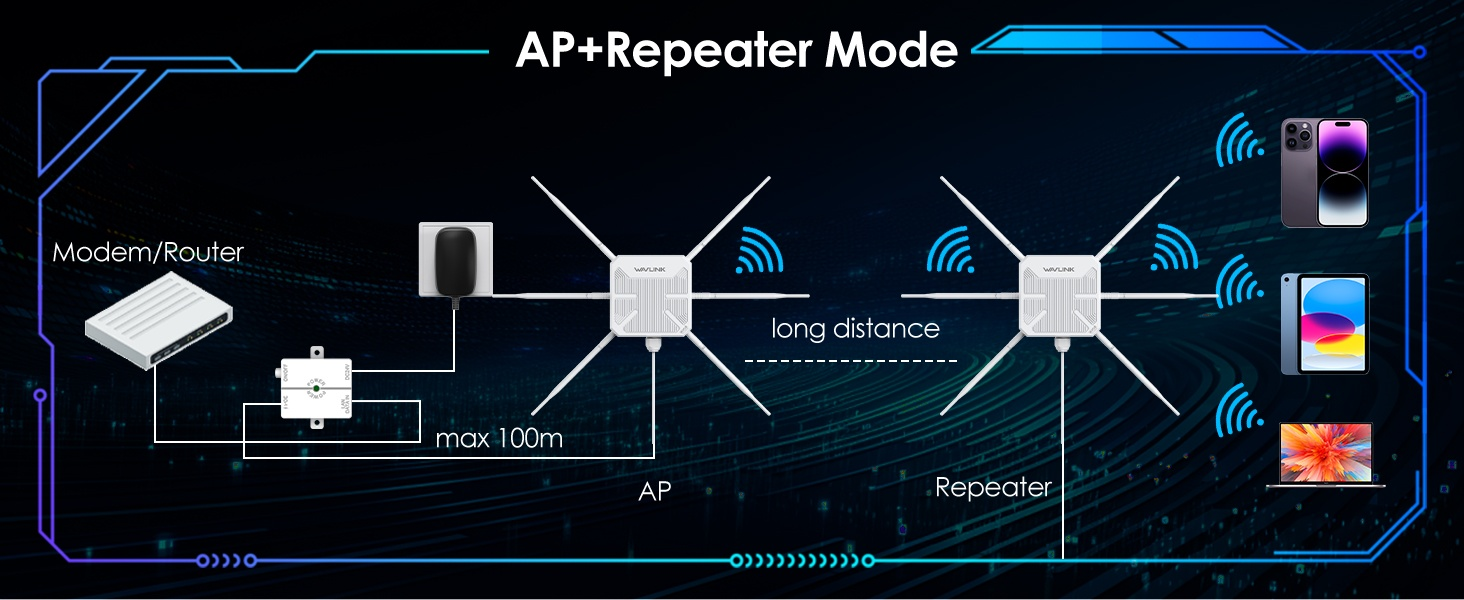

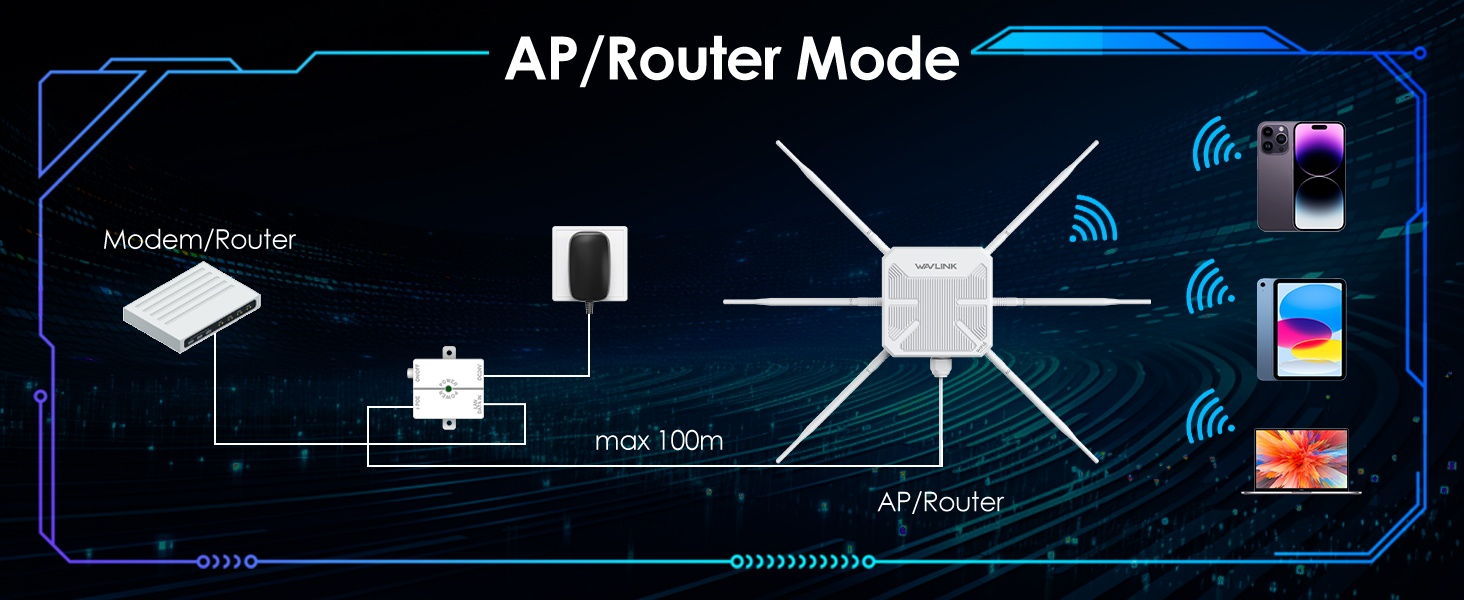

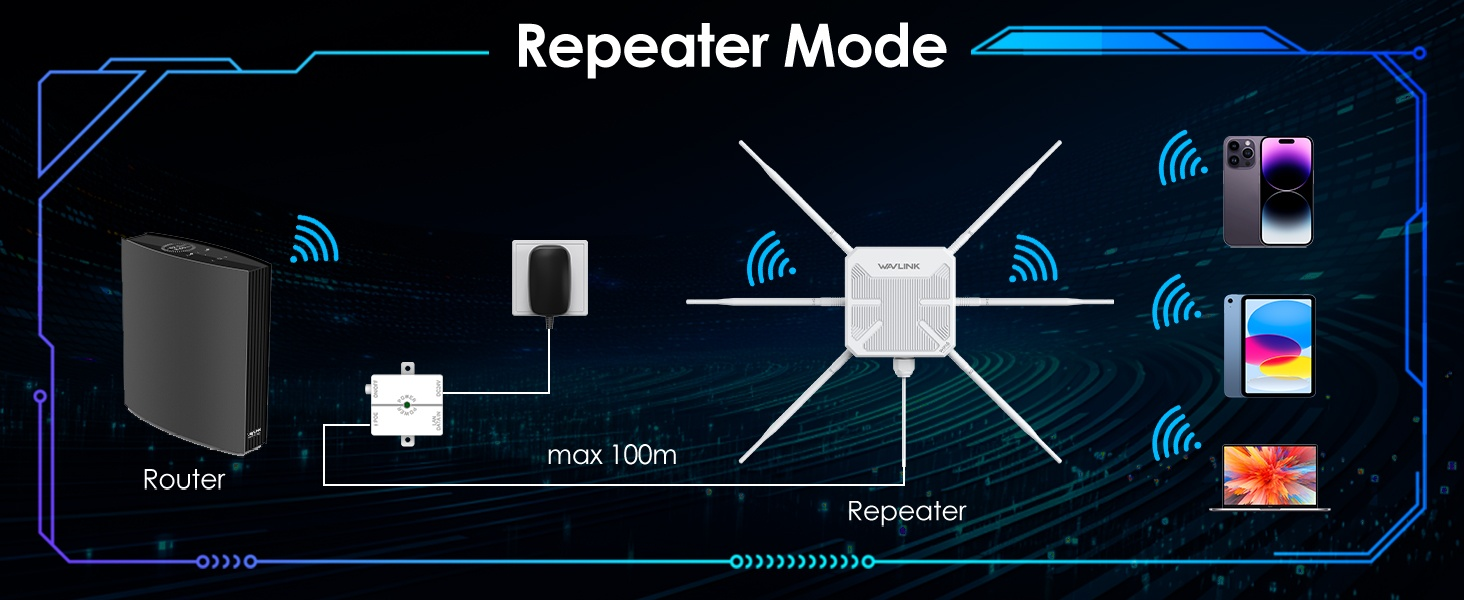

One unit covers up to 300 meters; multiple units link wirelessly with one click via WAVLINK Everything Mesh and share a single SSID, so users roam the property without reconnecting. Mesh-compatible with the WN586X3, WN583AX3, and WN573HX3. Six operation modes — Router, AP, Repeater, Mesh Router, Mesh Extender, and Fat/Fit AP — adapt to any topology, and large-scale deployments can be centrally managed via a WAVLINK AC controller.
